BIM Flower

Making a field of flower-like shapes appears to be a challenge with Revit, but is a good exercise of how to make adaptive components and insert them into a pattern-based panel.
The first step is to plan the model. My approach is to make triangular petal object using the Generic Model Adaptive family template. This will be loaded and placed in a Pattern-based panel with a hexagon type, using mirrored pairs of petals This looks like a cloverleaf. This will be added to a divided surface defined using a Mass object. Good practice is to start simple and add complexity. Eventually I want the petal pairs to fold gently upward.


You must create an armature for constructing the shape of the petal. Think of this as scaffolding for construction. In the film industry, this is known as “rigging”.

 Upon opening the Generic Model Adaptive, create a triangle of adaptive points. It does not matter where one draws the triangle, but it usually helps to draw it approximately the size that you anticipate using in the final.

Trace a chain of reference lines connecting the points to make a triangle. Create a random set of point objects, and then use Pick New Host to place them on the reference lines.

Construct additional reference lines and host additional points on them to enable locations for the control points of the curve that will make the petal.
You can test your rigging by selecting a reference point on a line and changing the “Normalized Curve Parameter” value. This is a number between 0 and 1 that locates a point on a curve (or straight) line as a linear proportion along the length of the curve. The reference lines should move and change without breaking or separating from an endpoint.

Draw spline curves with control points on the reference points that you created. You can move the curves around by changing the Normalized Curve Parameter of the reference points.
The shape can be drawn all on the default workplane. When it is inserted, all points are going to be in the same plane.
I have not been particularly rigorous with controlling the curves in my model. I suspect that there are cases that will cause the spline curves to cross each other, which would create a chain that cannot be made into an extrusion. Also, I have not controlled it to try to make sure that the form is smooth. My shape has some abrupt changes, sometimes. However, if you anticipate the size and shape of the final instances of the flower, you can probably avoid failures.
Select all of the curves to determine a closed chain and extrude it. I locked the top and bottom profile of the extrusion so that I don’t accidentally modify it into a blend. This also gives positive and negative offset values. Make the extrusion the thickness of the stock that you will use to manufacture the panels. I set it for 1/2”. It would probably be best to set it to .25” positive and .25” negative so that it is centered on the insertion point, but I did not.


Next, make the pattern-based panel. Set the dimensions to be close to those you expect to use in the final. Change it to a Hexagon.

Draw crossing lines to construct the center of the hexagon.
 Load your petal into the panel, and place a petal with the first of the placement points at the center and the next two at the edge. I designed my petal to have a straight edge between the first and second points, allowing me to place petals in the hexagon in pairs that join along the straight “fold” edge. Place the first petal in clockwise order, the second in counterclockwise order, and so on. (This is why I should have extruded it both positive and negative. In my model the petals don’t line up perfectly because one in each pair extrudes up and the other extrudes down.)

Flex the model by using a 3D view to drag the hexagon vertices up and down. The petals should deform to move up and down with each vertex independent.


 Next, make a mass surface for arraying the petals. Open a New Mass.
 CTRL click on the center plane to make additional vertical planes.
 Click on a vertical plane to make it the active drawing surface and draw a spline. Draw splines on each vertical plane. It is best to use the same number of control points for each spline (although usually one or two more control points doesn’t matter.)

 Make the blended sweep by ctrl clicking all four splines and choose the Create Form icon.

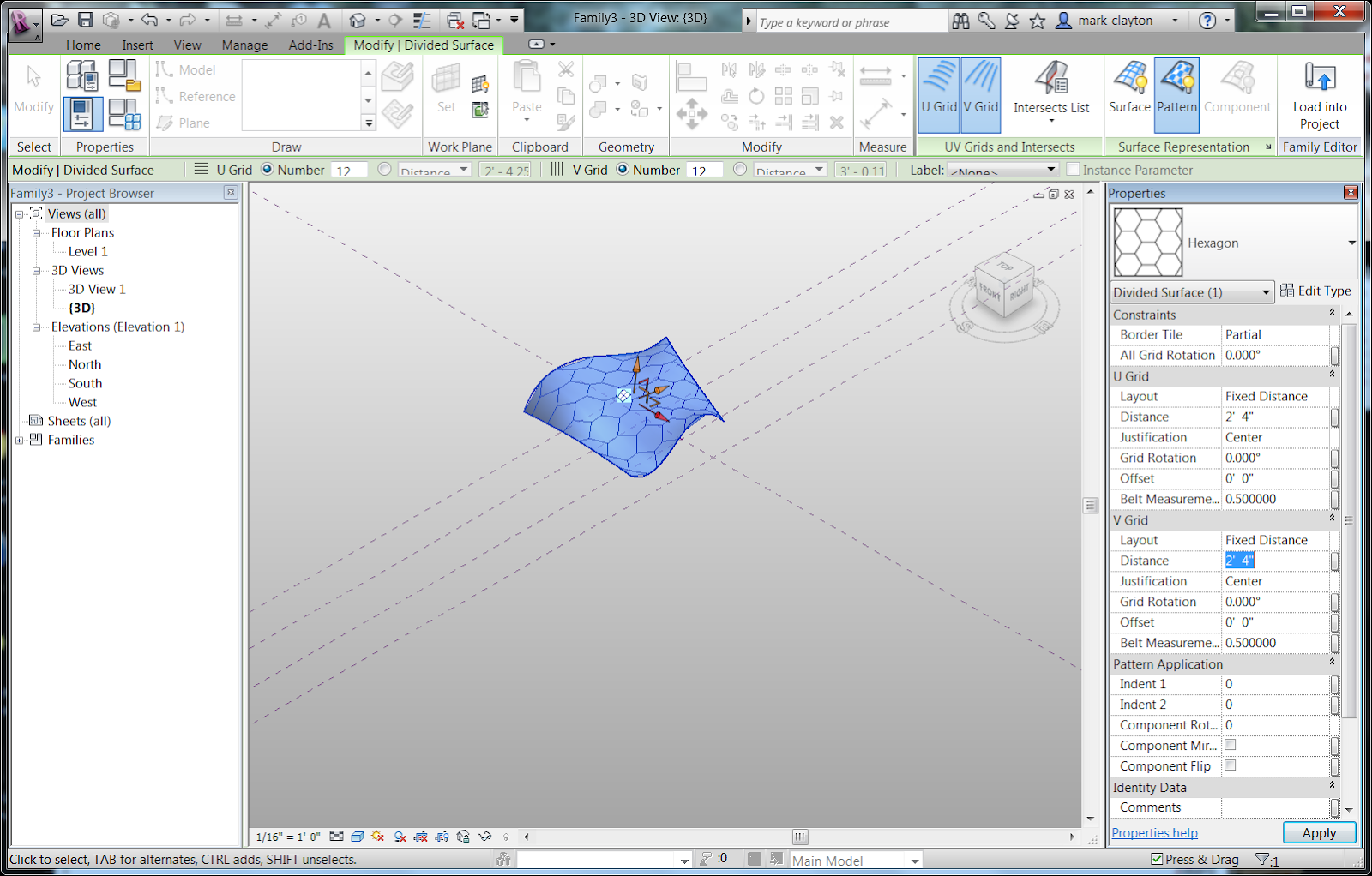

 Click the surface of the mass to select it. Choose the Divide Surface icon. With the divided surface, choose the Hexagon pattern in the Properties panel Type Selector. I changed the spacing of the divided surface lines to be a fixed grid approximately the size of my final design.

 Switch views back to the cloverleaf panel. You can select the grid and then use the button for Reset Points to Grid to move all of the flexed control points back to the grid.
 Load it into your mass.
  In the mass, use the type selector of the divided surface to choose your cloverleaf panel, wait a few moments, and the pattern is created on the surface. It may fail for some of the panels when the angles are too extreme. I suspect that mine failed for two panels that created a self-intersecting curve that could not be extruded. I could either make the mass surface a little more gentle or I could refine the design of the panel so that it is more robust. I simply ignored the error by clicking on Delete type.


 The next step is to go back to the cloverleaf to make the petal pairs curl up at the edges. The concept is to place reference points on the adaptive control points and then move them up vertically. They must move vertically in relation to the adaptive points and not the level workplane. This means the reference points must be hosted by the adaptive point.
 Using the 3D view, place a reference point anywhere. Use the Pick New Host to select the adaptive point that controls the corner of the petal. Hover over the placed reference point and Tab until you can select the reference point.
 In its Properties panel, it has an Offset property. Change the value in this property and the point should move vertically away from the adaptive point. You can flex the model by spinning the 3D view and changing the Offset to see the point move. You can then select the instance of a petal to highlight it in blue. The insertion points are then indicated. You can hover over an insertion point and tab until you can select it. Move it up to snap to the offset reference point. The petal should be “bent” upward.

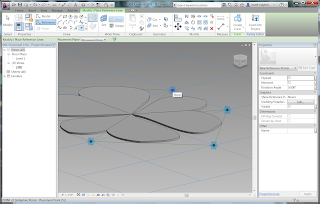

 (In this screen capture, I had deleted the petal, expecting to place it again with a snap to the offset reference point. This is not a necessary step because you can drag the insertion point of the already inserted petal to the new location hosted by the reference point.)

Reload the model into the mass to test the offset point.
If everything looks fine, go back to the cloverleaf family. Add five more reference points in the same way. I arranged the reference points so that there are two over the first adaptive point, two over the third adaptive point, and two over the fifth adaptive point. These will be the edges of the petals, while the spines of the petals go through the second, fourth, and sixth points.
 Make Parameters for the three offsets of the three petal pairs. This is useful for controlling the petal pairs so that both edges go up the same amount. I put in default values of 4”, 6”, and 8”.
 Associate the appropriate offset parameter with the six reference points. You should be able to control their vertical displacement by changing the parameters.
  Move the petal insertion points to snap to the appropriate reference points. Flex the model by changing the parameter values and see the petals fold up and down.

 Reload into the mass surface. Again, there could be problems with one or all of the cloverleafs. Try changing the size of the divided surface grid to see if it will build at some size. Usually it will build at a size close to the size of the hexagon grid in the cloverleaf.

Changing the fold dimension

 Because we used parameters to control the offset, there is one additional feature to exercise. If you click the divided grid, you can then select an individual cloverleaf. In its Properties panel, the offset parameters appear. You can fold the petal pairs upward by changing these values. In this way, you can make even more complexity in your form.

Breaking it

 While everything looks great in my model, a few more trials show that the cloverleaf is not robust -- it will break under some circumstances. If the pattern is less than 1’7” it will not work. My guess is that the curves become self-intersecting and cannot be extruded.

However, since I am able to make the design that I wanted, I will ignore the brittleness of the model.
